Turbine blades are critical components in aircraft engines, responsible for withstanding high temperatures, pressure, and rotational forces. Even minor defects such as cracks, corrosion, or deformation can affect engine performance, reduce efficiency, and potentially compromise safety. Borescope inspections allow technicians to visually assess these blades without disassembling the engine, saving time and reducing the risk of errors during reassembly. Performing thorough and systematic inspections ensures that early signs of wear are addressed before they escalate into costly repairs or operational disruptions.

Preparing for a Borescope Inspection

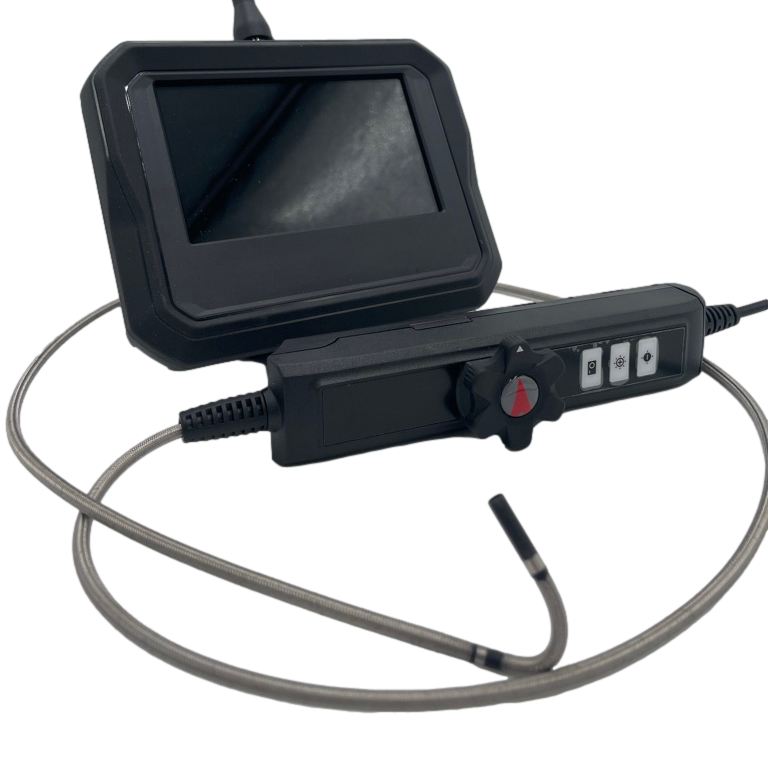

Preparation is essential for effective turbine blade inspections. Technicians should review maintenance records to identify previous issues and plan inspection points. Selecting the appropriate borescope—considering probe flexibility, articulation, and camera resolution—ensures access to all areas of interest. Proper lighting, lens attachments, and focus settings are also necessary to achieve high-quality images. Preparing checklists of target inspection areas helps maintain a systematic approach, reducing the risk of overlooked defects.

Inspecting for Cracks

Cracks are among the most serious defects in turbine blades. They can result from thermal stress, fatigue, or impact damage. Using a borescope, technicians should examine both the leading and trailing edges, the airfoil surfaces, and the root section where the blade attaches to the disc. High-resolution imaging allows identification of small cracks that may not be visible to the naked eye. Any cracks should be documented with images and measurements, and the severity assessed according to maintenance guidelines to determine if immediate corrective action is required.

Checking for Corrosion

Corrosion can develop due to moisture, chemical exposure, or inadequate protective coatings. Technicians should inspect the blade surfaces for pitting, discoloration, or surface roughness. Special attention should be given to cooling holes, attachment points, and areas prone to airflow accumulation, as these spots are more susceptible to corrosion. Using a borescope with adjustable lighting helps reveal subtle surface changes. Detecting corrosion early allows for timely maintenance, preventing further deterioration and ensuring engine reliability.

Examining Deformation and Wear

Turbine blades are subject to bending, twisting, and erosion during operation. Deformation can affect blade clearance and airflow efficiency, leading to performance issues. Borescope inspections should include checks for bowing, warping, tip erosion, and leading-edge damage. Magnified imaging allows technicians to compare current blade geometry against reference standards or previous inspection records. Identifying deformation early helps determine whether blades can continue in service or require repair or replacement.

Inspecting Cooling Channels and Holes

Many turbine blades feature internal cooling channels to maintain operating temperatures. Blocked or damaged channels can compromise thermal performance and accelerate blade wear. Technicians should use the borescope to verify that cooling holes are unobstructed and free of deposits. Imaging internal surfaces helps confirm proper air passage and identify signs of localized erosion or scaling. Accurate assessment of these areas ensures that blades continue to operate safely under high-temperature conditions.

Assessing Blade Roots and Attachments

Blade roots, where blades connect to the disc, experience high stress and are common locations for cracks or wear. Borescope inspections should examine root fillets, locking features, and attachment surfaces. Look for cracks, fretting, or corrosion that could compromise the secure fit of the blade. Documenting these observations allows maintenance teams to take corrective action before failures occur, maintaining engine integrity and preventing unplanned downtime.

Identifying Signs of Heat Damage

Turbine blades operate at extremely high temperatures, making them susceptible to heat-related damage. Technicians should look for discoloration, oxidation, or material degradation along the leading edges, trailing edges, and airfoil surfaces. High-resolution borescope imaging enables the detection of subtle color changes or surface scaling. Early identification of heat damage supports timely maintenance, preserving engine efficiency and preventing more severe failures.

Systematic Inspection Techniques

Efficiency and consistency are critical during turbine blade inspections. Technicians can follow a step-by-step procedure, examining blades in a set sequence to ensure complete coverage. Rotating blades or using articulation features of the borescope helps capture images of all surfaces and angles. Recording images and video allows for later analysis, comparison with previous inspections, and accurate documentation of any defects. Systematic methods reduce the likelihood of missed areas and improve the reliability of maintenance records.

Documenting and Reporting Findings

Comprehensive documentation is essential for maintenance, regulatory compliance, and operational planning. Capturing high-quality images and video during the inspection provides a permanent record of blade condition. Annotating images with defect locations and measurements helps maintenance teams prioritize repairs or replacements. Digital records support trend analysis, enabling technicians to monitor wear patterns over time and make informed decisions for preventive maintenance.

Training and Technician Proficiency

Proper borescope use requires trained and experienced technicians. They must be proficient in probe manipulation, image interpretation, and defect documentation. Regular training enhances the ability to detect subtle cracks, corrosion, or deformation that could otherwise be overlooked. Experienced technicians also work more efficiently, reducing engine downtime and improving overall maintenance reliability.

Optimizing Aircraft Engine Inspection Workflows

Borescope inspections are a vital part of maintaining turbine blades in aircraft engines. By systematically checking for cracks, corrosion, deformation, heat damage, and issues with cooling channels and attachments, technicians can prevent costly repairs and ensure engine performance. Proper preparation, systematic techniques, and accurate documentation improve inspection quality and operational efficiency. For aviation professionals seeking reliable tools to support turbine blade inspections, USA Borescopes provides advanced equipment designed to enhance accuracy and streamline maintenance workflows. Contact them today.
